A state-of-the-art library for the preservation and protection of all forms of esoteric knowledge and history.
A resource for serious researchers, scholars, and students.
A facility that will have both a physical presence and a digital presence to maximize access and utility.
A setting that provides quiet and has few distractions
A resource that may be used to establish accredited degree programs for Neo-Pagan and Magickal clergy.
Function
Store all forms of esoteric knowledge: books, periodicals, special collections, music, etc.
Restore and preserve rare and damaged text.
Organize, catalog, and cross-reference all materials.
Digitize all materials legally allowable.
Make the digitized material available through internet.
Provide on-site workstations and other facilities.
Design Considerations
The building must be extremely fire resistance.
It must be able to weather natural disaster.
It must be energy efficient and operational costs kept low.
It must have reliable, zoned control of the internal environment.
It must be designed for the researcher and serious student.
It must be adaptable and allow for easy expansion.
It must be handicapped accessible.
It must be respectful to the environment.
It should be as beautiful as budget allows.
Building Technology

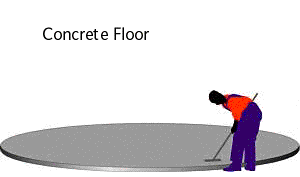

Thin Shell Concrete Dome
The building technology we have chosen is from Monolithic Constructors, Inc. and the animated graphic was created with images from their site. Monolithic Dome Website
It is extremely strong.
It is nearly seamless and provides superior climate control.
Large heat-mass contributes to energy efficiency.
Shell is completely self supporting, allowing for maximum flexibility of interior space.
Uses no lumber in construction of exterior.
Can be molded into almost any shape.
Extremely long life span with minimal maintenance.
Other Design Considerations
Geothermal heating/cooling system.
Separate and zoned humidity control.
Air-locked entrance.
Septic field and well.
Low-voltage, movable, high intensity lighting.
Indirect sunlight
Zoning and legal fees.

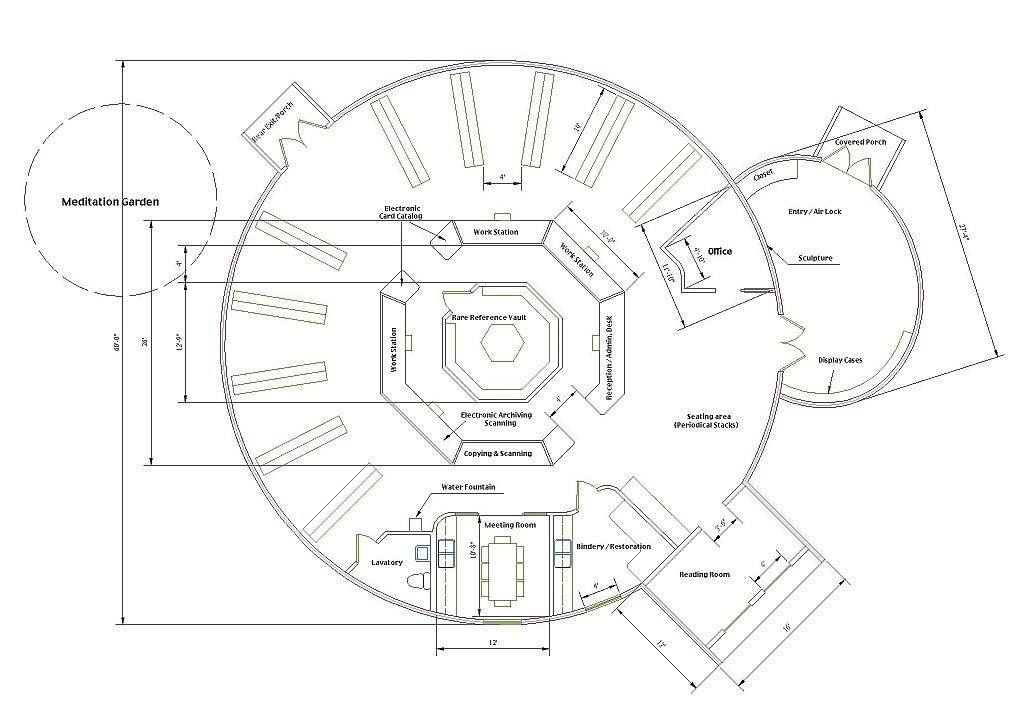

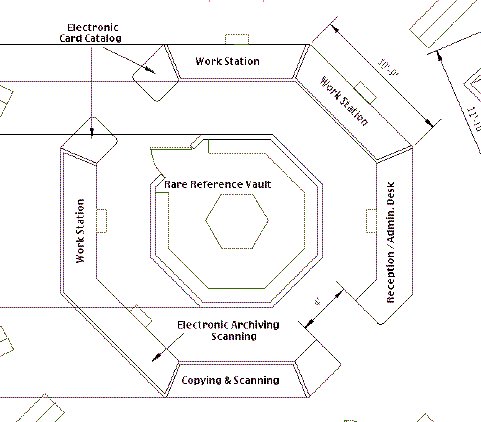

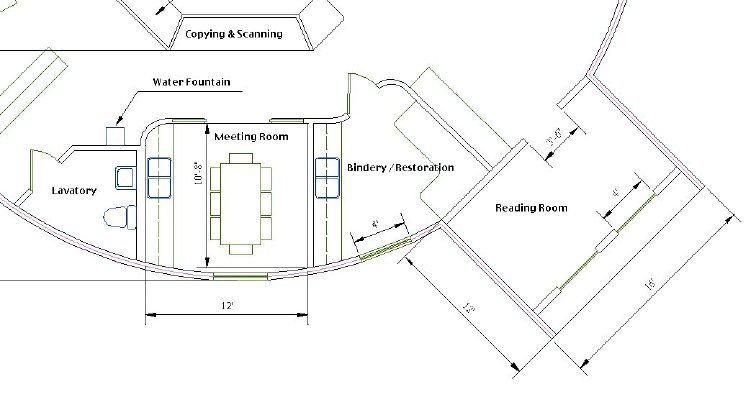

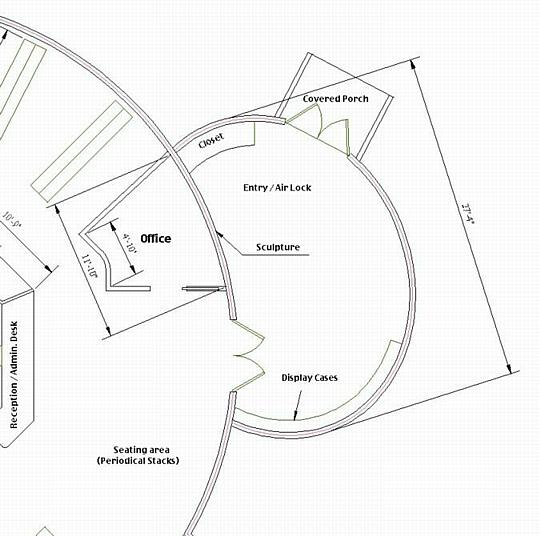

Initial Floor Plans
Hit your browser's back button after viewing each image.
